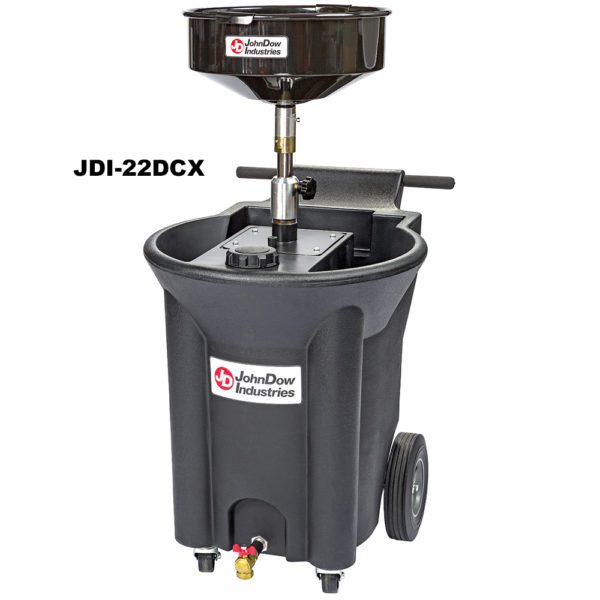

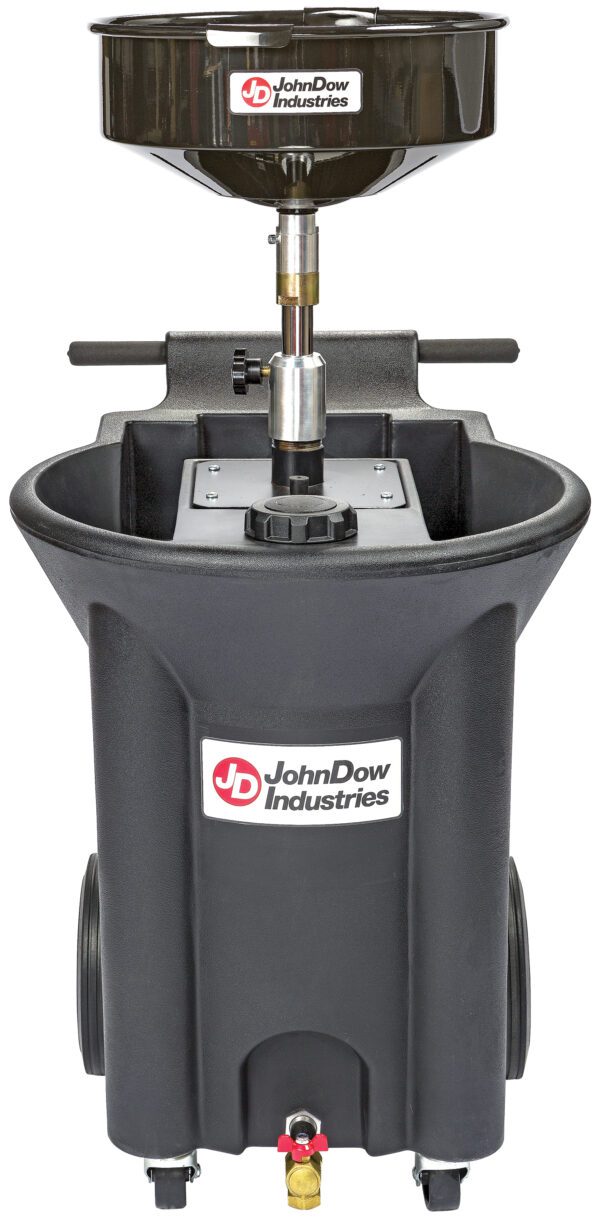

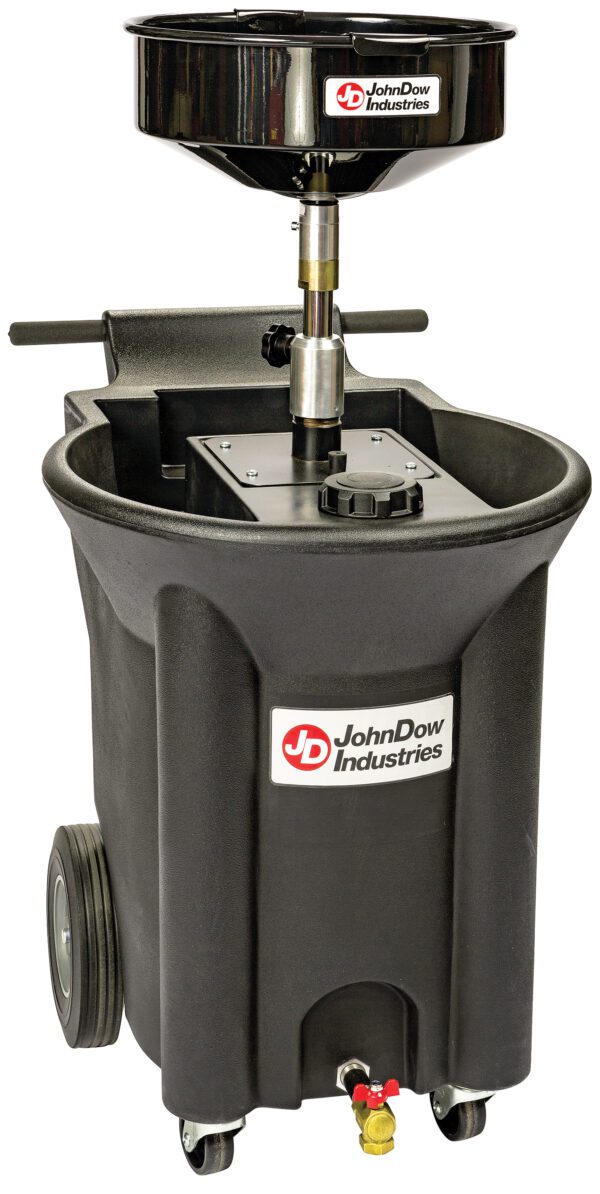

22-Gallon Oil Change Station

Description

JDI-22DCX  GOOGLE THIS PART HERE

This 22-gallon capacity drain is designed for the high-volume automotive service facility with features that make oil change service productive and profitable. This tank is virtually indestructible, and the poly construction prevents accidental damage to vehicles.

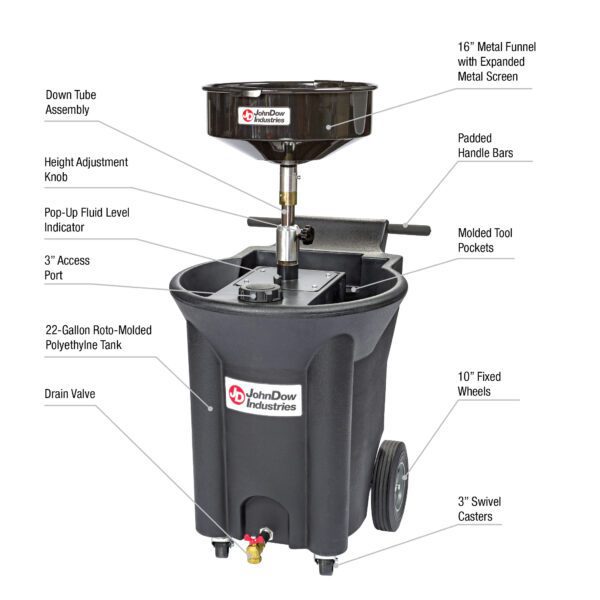

Features include:

• 22-gallon high-impact polyethylene tank
• Built-in filter drain
• Molded tool pockets
• Pop-up fluid level indicator
• 3″ access port
• Padded handle bars
• Convenient drain valve adapts to most quick disconnect couplers
• The 3″ front casters and 10″ rear wheels make it easy to maneuver.

Specifications:
Gallons 22-gallon
Material Roto-molded polyethylene
Funnel Size 16″
Wheel Size (Front) 3″ Swivel Casters
Wheel Size (Rear) 10″ Fixed
Height Adjustment 45″ to 70″
Weight 55 lbs.

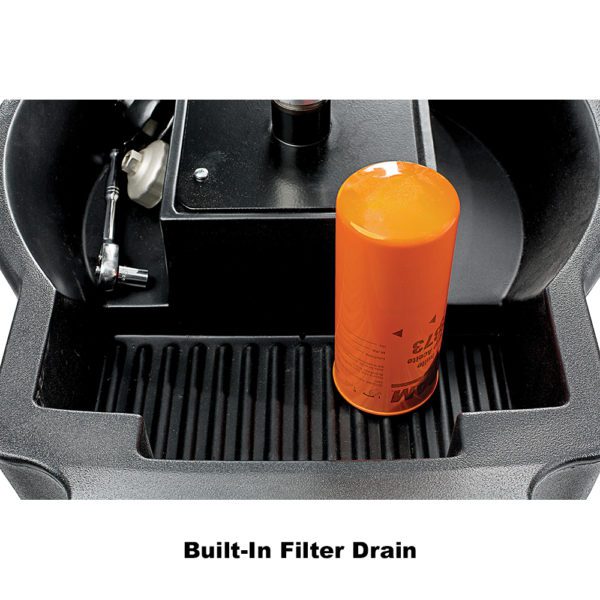

Built-In Filter Drain
The built-in filter drain holds four to five standard oil filters and drains directly into the drain body.

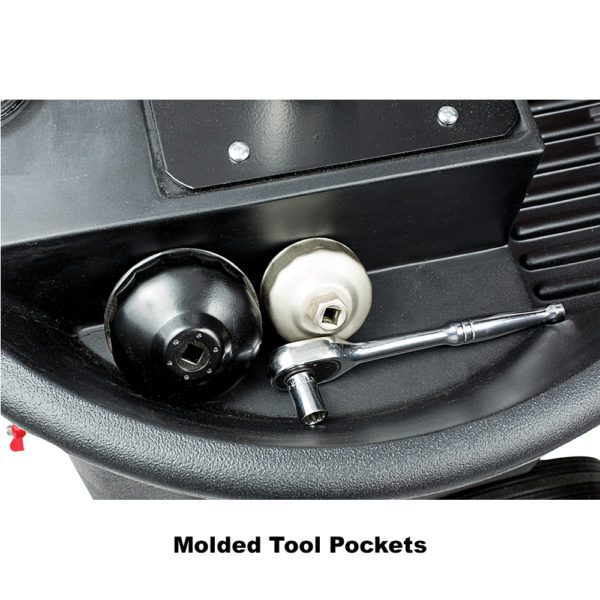

Molded Tool Pockets
Keep wrenches, pliers and other tools readily accessible.

Pop-Up Fluid Level Indicator
Easily see when fluid levels reach maximum capacity.

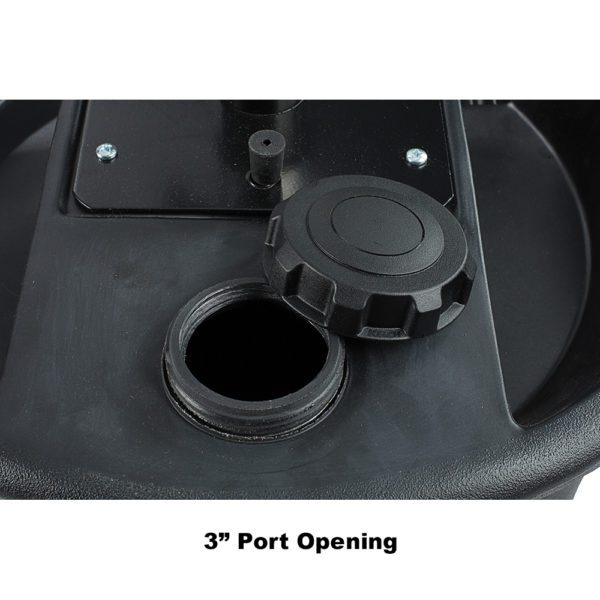

3″ Port Opening
Use this 3” port to manually pour other fluids in the drain for storage.

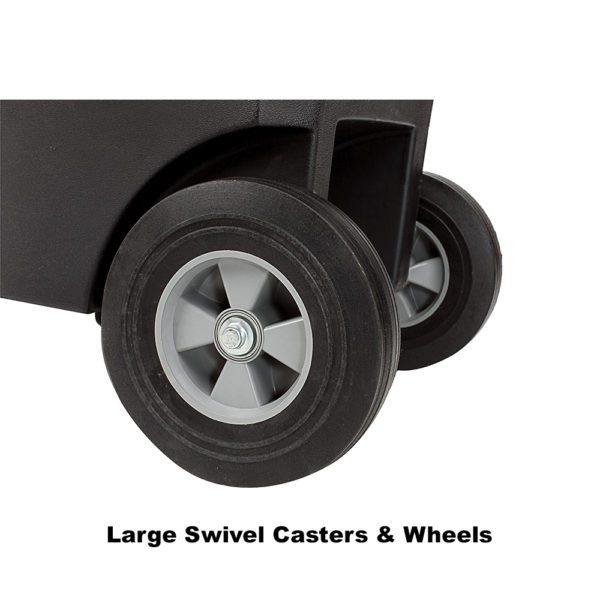

Large Swivel Casters & Wheels
The 3″ front casters and 10″ rear wheels make it easy to maneuver.

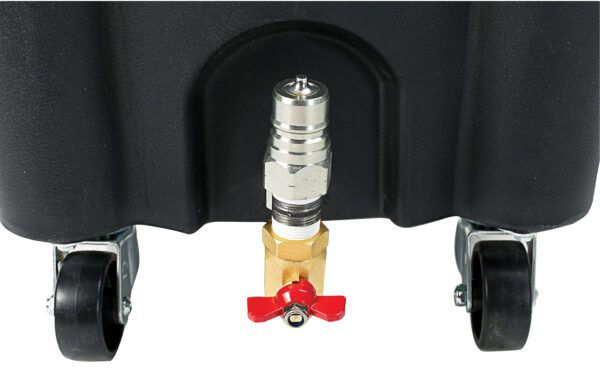

Conversion Kit for Pump Evacuation Systems
The optional No. 61431-2 conversion kit adapts the drain for use with most air diaphragm evacuation systems.



Resource Downloads:

22-Gallon Oil Change Station
User’s Manual
Product & Parts Breakdown
