Description
JDI-150DE

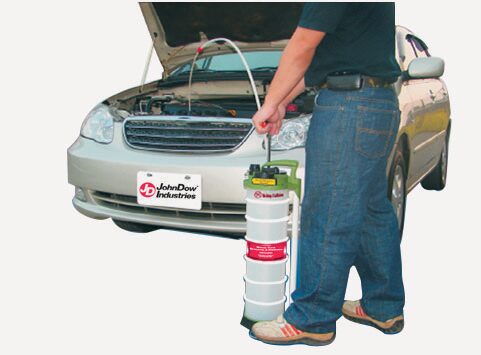

GOOGLE THIS PART HEREThis 2-in-1 Manual Extractor and Discharge Pump is versatile enough to remove a variety of fluids from all types of vehicles and equipment while also providing you with discharging capabilities. With its manual operation, you can easily use this pump anywhere and switch from “In” to “Out” without the need for compressed air. Use any of the three extractor tubes in filler ports and dipstick tubes.
Features include:
• 2-in-1 dual-use pump to extract and/or discharge
• Energy saving manual operation
• Chemical-resistant heavy-duty polyethylene construction
• Automatic pressure relief
• Full color retail package
Extractor tubes included:
• Dipstick tube: .23 in. OD x 2.9 ft. long (5.8mm x .85m)
• Dipstick tube: .26 in. OD x 2.9 ft. long (6.7mm x .85m)
• Main extraction tube: .39 in OD x 3.2 ft. long (9.8mm OD x 1m)
Specifications:
|
Reservoir capacity |
1.6 Gallons |
|
Max Operating Temperature |
212° F (100°C) |
|
Weight |
6 lbs. |
|
Package size |
25.7” x 7.0” x 7.0” |
Resource Downloads:
• Fluid Extractor Flyer
• User’s Manual
