Description
JDI-VFB1 & JDI-VFB3326

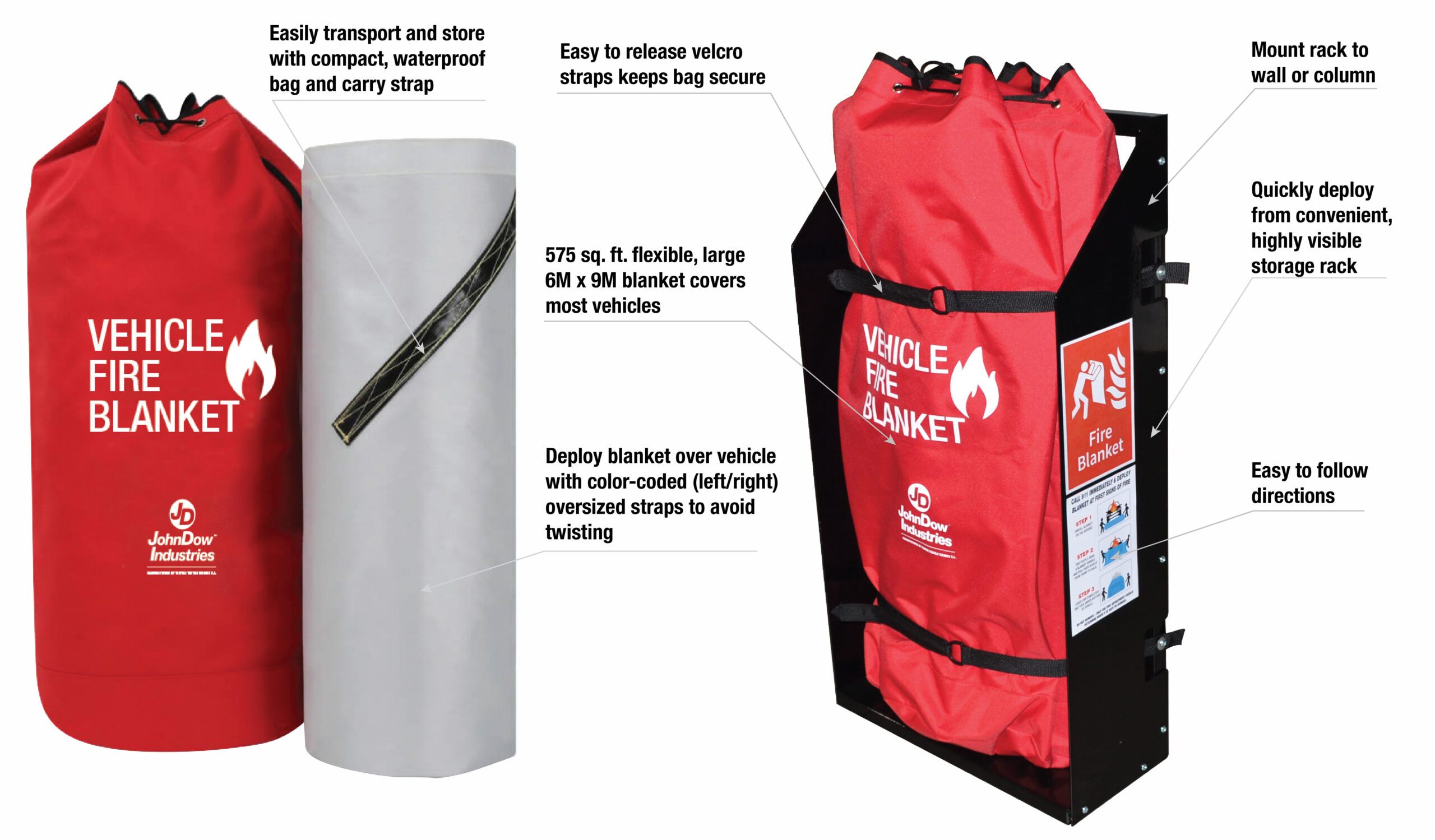

The JohnDow Vehicle Fire Blanket enables you to suppress Electric (EV), Hybrid, and Internal Combustion Engine (ICE) vehicle fire flames and fumes. The high temperature-resistant material prevents the fire from spreading and damaging surrounding vehicles and property in your shop. It also deprives vehicle fires of oxygen and minimizes the potential combustion reducing the fire temperature.
JDI-WRFB
The Vehicle Fire Blanket Rack (sold separately) can mount to a wall or column for easy deployment. The steel rack includes easy-to-release Velcro straps to keep bag secure and easy-to-follow directions and signage.
Features:
• The JDI-VFB1 is a flexible, large 19.5′ x 29.5′ (6x9M) blanket covers most vehicles
• The JDI-VFB3326 is a flexible, large 26′ x 33′ (8x10M) blanket covers larger vehicles up to Class 3
• Designed for gas, hybrid and EV vehicles
• Easily transport and store with compact, waterproof bag
• Quickly deploy from convenient, highly visible storage rack
• Comfortably deploy blanket over vehicle with oversized straps
• Single use
Benefits:
• Limits damage and spread of fire to nearby areas
• Use on any passenger vehicle including internal combustion vehicles and electric vehicles
• Contains toxic smoke derived from combustion
• Contains thick smoke for better visibility
• Deploy in under a minute with only two people
Ideal for:
• Parking Lots
• Automotive Repair Facilities
• Firefighters
• Parking Structures
• Service Stations
• Charging Stations
Specifications
| JDI-VFB1 Blanket |
JDI-VFB3326 Blanket |
Fire Blanket Wall Rack |
|
|---|---|---|---|
| Size | 19.5′ x 29.5′ (6x9M) 575 sq. ft |
26′ x 33′ (8x10M) 858 sq. ft |
33.5″H x 16″W x 8″D |
| Material | Fiberglass & Flame-resistant coating | Powder-coated steel | |
| Weight | 61.7 lbs. | 86 lbs. | 19 lbs. |
Fabric Data
| Fire Reaction | EN 13501 | A2 s1 d0 | |
| Yarn | DIN EN 12654 | Warp 68×2 ±3% Weft 68×2 ±3% | |
| Thread Count | DIN EN 1049 | Warp 18.0 per 1 cm ±3% Weft 12.6 per 1 cm ±3% | |
| Thickness | DIN ISO 4603/E | 0.41 mm ±1% | |
| Tensile Strength | EN 13934-1 | Warp 5000N/5cm ±10% Weft 4277 N/5cm ±10% | |
| Weight | EN 12127 | 460 gr/m² ±5% | |
| Coating | Flame retardant polymer coating on both sides | |
Resource Downloads:
• Vehicle Fire Blanket Flyer
• Vehicle Fire Blanket Video
• Vehicle Fire Blanket Placard Instructions
• Vehicle Fire Blanket User Manual
• EV & Hybrid Service & Safety Repair Catalog
