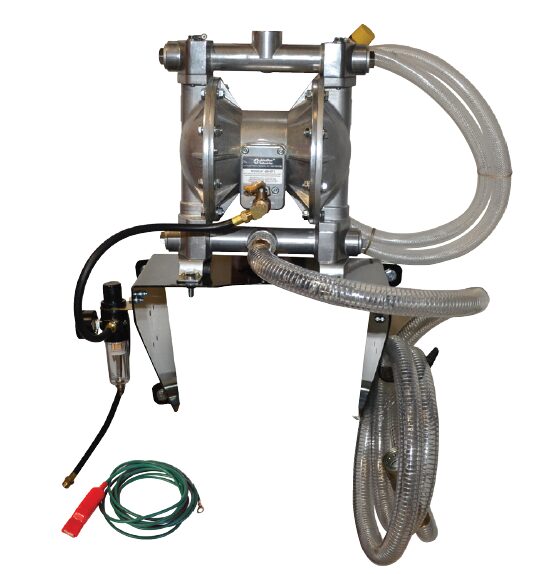

Air-Operated Diaphragm Pump Evacuation System Kit (UL and Non-UL)

Description

Available in both in both UL and non-UL Listed options, this versatile Air-Operated Diaphragm Pump Evacuation System Kit comes in a leak-free, all-bolted durable construction for use in automotive applications, among others. Rated for use with diesel, kerosene and oil, this pump features O-ring seals and Nitrile diaphragm material, making it ideal for low-viscosity petroleum fluids.

JDI-DPES Features:

• Air-Operated Double Diaphragm Pump
     • 1”Inlet/Outlet
     • Heavy-duty aluminum construction
     • 1/4” Air Inlet
     • Up to 24 Gallons Per Minute (GPM)*
• 2’ Air Hose with 115 MAX psi
• High-efficiency filter controls pressure and flow of discharge
• Wall Mount Bracket easily attaches to wall or other preferred mount
• 6’ Delivery Hose with 1”Inlet/Outlet
• Hose Bracket attaches to wall mount and prevents clutter and potential hose damage
• 10’ Suction Hose with 1”Inlet/Outlet
• Ground Wire prevents static discharge

JDI-DPES-UL Features:

• Air-Operated Double Diaphragm Pump
     • 1”Inlet/Outlet
     • Heavy-duty aluminum construction
     • 1/4” Air Inlet
     • Up to 24 Gallons Per Minute (GPM)*
• 2’ Air Hose with 110 MAX psi
• High-efficiency filter controls pressure and flow of discharge
• Wall Mount Bracket easily attaches to wall or other preferred mount
• 6’ Delivery Hose with 1”Inlet/Outlet
• Hose Bracket attaches to wall mount and prevents clutter and potential hose damage
• 10’ Suction Hose with 1”Inlet/Outlet
• Ground Wire prevents static discharge

*Flow rate will vary based on temperature, viscosity, purity, and type of fluid.

Specifications

	JDI-DPES	JDI-DPES-UL
Flow Rate	24 GPM	24 GPM
Ball Valve	PTFE	PTFE
Suction Hose	10’	10’
Delivery Hose	6’	6’
Material	Nitrile	Nitrile
Weight (Pump Only)	22 lbs.	22 lbs.
Max psi	115 psi	110 psi
